From Basic Switching to Timed Sequences: Explore Our General Purpose Relays, Timers, Impulse Relays, and Step Relays.
Power control relays are essential components for implementing automation logic, managing electrical loads, and ensuring precise system operation. LETOP offers a selection of high-quality Power Control Relays designed for reliability and performance. This includes General Purpose Relays for basic switching, Timer Relays for time-based control, Impulse Relays for latching functions, and Step Relays for sequential operations. Our diverse range of services can help you meet your specific control needs.
Built for durability and consistent switching operations.
Manufactured according to relevant IEC standards, ensuring safety and compatibility.
Each relay type is engineered for precise execution of its specific task, including timing, latching, sequencing, and switching
Standard DIN rail mounting and clear terminal markings facilitate easy installation in control panels.

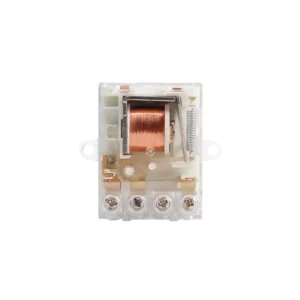

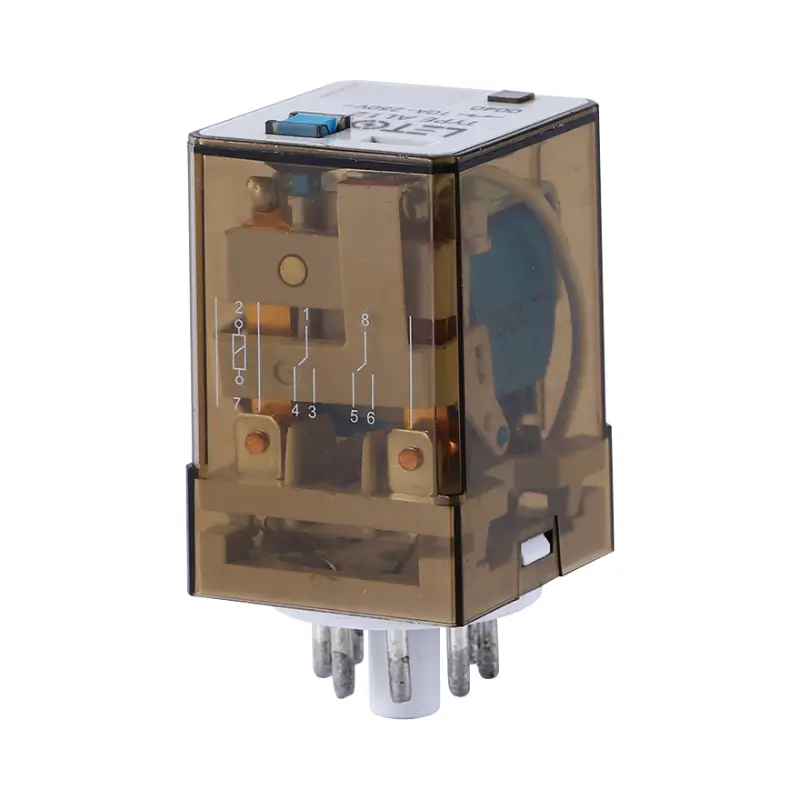

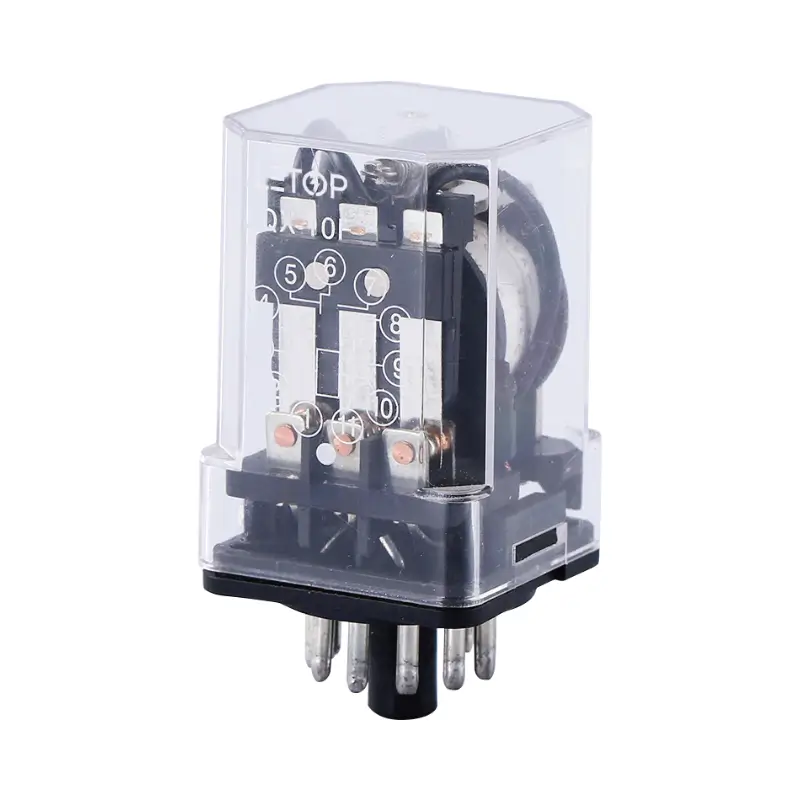

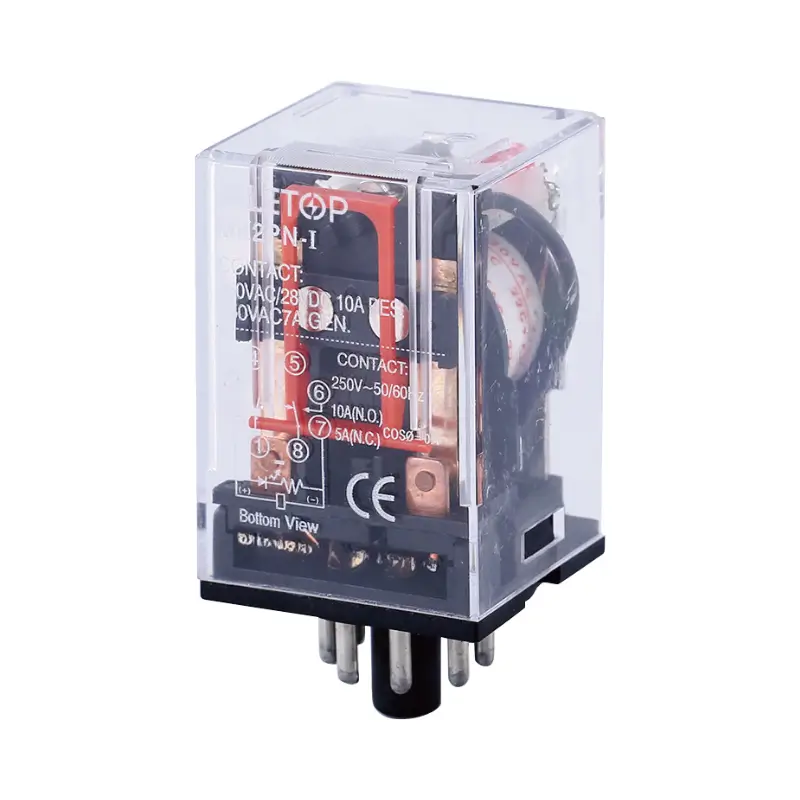

Electromechanical relays providing simple, reliable switching of circuits based on a coil signal. Ideal for isolating control circuits, interfacing different voltage levels, or switching moderate loads.
Features:
Various contact configurations (NO, NC, CO/SPDT, DPDT).
Multiple AC/DC coil voltage options.
Defined current ratings for contacts.
Often available with LED indicators and test buttons.
Common Uses:
Control panel logic, signal amplification, basic load switching (lights, fans, solenoids).
Timer relays can either activate or deactivate their contacts after a pre-set time delay following an input signal (trigger). Essential for timed sequences and process control.
Key Features:
Adjustable time ranges (milliseconds to hours).
Various timing functions: On-Delay, Off-Delay, Interval, Cyclic, etc.Multi-voltage input options.
Clear time setting interfaces (dials or digital).
Common Uses:
Motor start delay (star-delta), timed machine operations, lighting control duration, process timing.

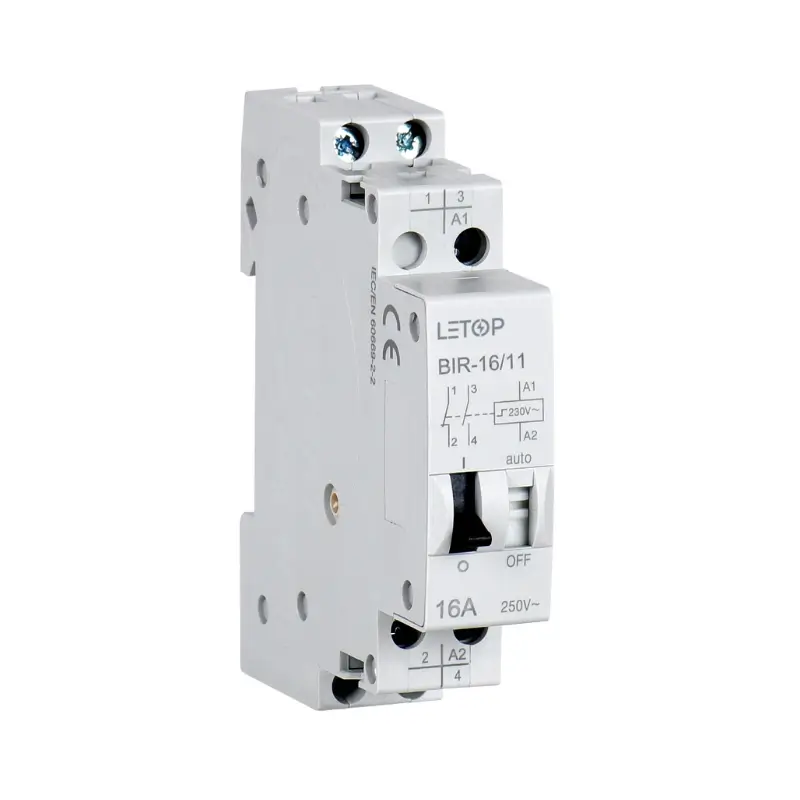

Impulse relay also known as latching or bistable relays. They change the state of their contacts (open/close) with each input pulse and maintain that state even after the pulse is removed. The coil only gets energized briefly.
Key Features:
Energy saving (no continuous coil power needed to hold state).
Contacts remain in position during power outages.Typically controlled by momentary push buttons.
Common Uses:
Lighting control from multiple locations (replacing complex wiring), simple sequence memory, energy management applications.
Step relays designed to sequentially switch between multiple output circuits each time an input pulse is received. They cycle through a predefined sequence of contact states.
Key Features:
Defined number of steps or output contacts.
Progresses one step per input pulse.
Can be used to control multiple loads in a specific order.
Common Uses:
Multi-stage lighting control, sequential starting of pumps or fans, simple machine operating sequences.
Choosing the right relay depends on your specific need: basic switching (GPR), time delay (Timer), state holding (Impulse), or sequencing (Step). Our technical team is available to assist you in selecting the optimal relay for your application.
Ready to implement precise control in your electrical systems? Contact LETOP today for detailed datasheets, pricing, and expert advice on our General Purpose, Timer, Impulse, and Step Relays.
Here you can find some of your common questions related to power control relays, which can help answer your doubts.
All Power Control Relays are manufactured under ISO9001:2015 quality management system. Our Timer Relays series holds CE and CCC international certifications. Each product batch undergoes 100% functional testing and aging trials before shipment, ensuring industrial-grade reliability and performance standards.
Standard Timer Relays have a minimum order quantity of 100 pieces, with stock items shipping within 3-5 working days. Custom Programmable Timer Relay projects require 7-15 days for prototype samples and 15-25 days for batch production. We support small trial orders to help new customers validate product performance.
Selection criteria include:
1) Operating voltage (12V-240V range);
2) Contact capacity and configuration (4-pin/8-pin/11-pin);
3) Timing range requirements;
4) Mounting method (DIN rail/panel mount).
Our technical team provides free application consulting and product selection guidance based on your specific requirements.
Yes, we offer comprehensive OEM customization services including appearance design, functional parameters, and packaging specifications. Our R&D team and tooling capabilities support custom Timer Relays development from concept design through prototype validation to mass production, with complete project management support.
LETOP 22,000 square meter facility produces 500,000 Power Control Relays monthly. We maintain strict IQC, IPQC, and FQC quality control with automated testing equipment and constant temperature aging rooms. Product qualification rate exceeds 99.5%, providing reliable supply chain support for our customers.
We provide comprehensive technical support including:
1) Product selection and application guidance;
2) Circuit design consultation and wiring diagrams;
3) Sample testing and validation support;
4) Production coordination during batch manufacturing;
5) 24-hour response for after-sales issues.
Our engineering team helps resolve Timer Relays application challenges promptly.
Key advantages include:
1) 15 years of specialized manufacturing experience;
2) Independent R&D capabilities for rapid custom responses;
3) Rigorous quality management ensuring consistent performance;
4) Competitive factory-direct pricing;
5) Flexible service supporting both small and large volume requirements;
6) Comprehensive after-sales support network.
Digital Timer Relay offers significant advantages:
1) Higher timing accuracy (±1% vs ±5%);
2) Convenient setting with intuitive digital display;
3) Multiple timing modes and functions;
4) Superior interference resistance for harsh environments;
5) Longer service life with minimal mechanical wear;
6) Simple maintenance and lower failure rates.
Though initial investment is higher, overall operating costs are lower.
LETOP DIN Rail Timer Relay strictly follows IEC 60715 standards with 35mm rail width, fully compatible with standard DIN rail mounting. Housing uses flame-retardant PC material with IP20 protection rating, operating temperature -25°C to +70°C. All terminals feature screwless spring clamp technology for convenient installation and maintenance, complying with European industrial standards.
LETOP provide large customers with:
1) Tiered pricing structure with volume discounts;
2) Annual contract price protection against material fluctuations;
3) VMI inventory management services ensuring timely delivery;
4) Dedicated account managers for personalized service;
5) Priority production scheduling for urgent orders;
6) Long-term partnership price protection policies.
We establish strategic partnerships for mutual benefit and sustainable growth.
