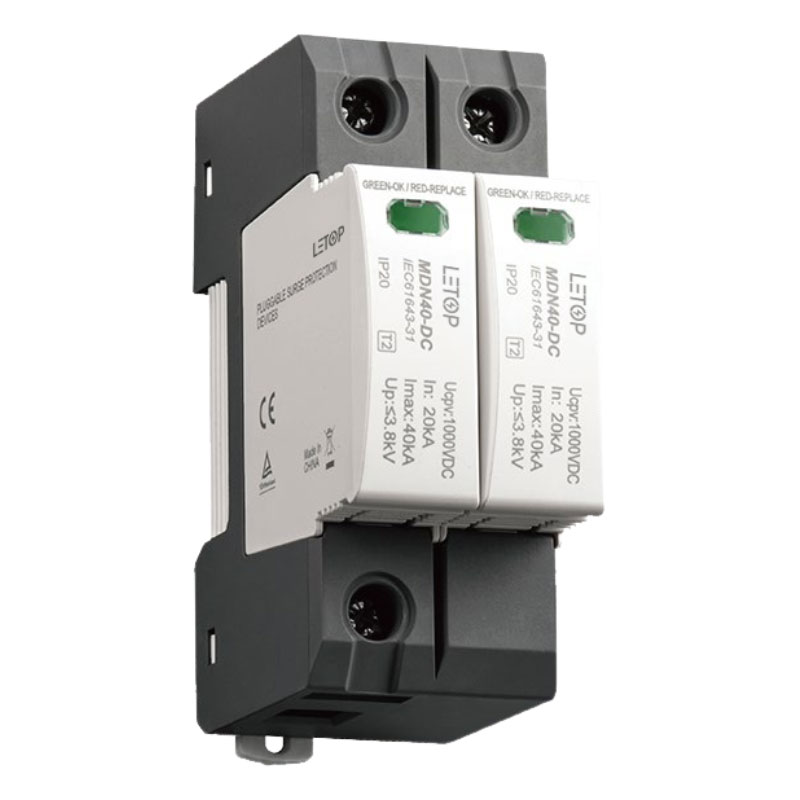

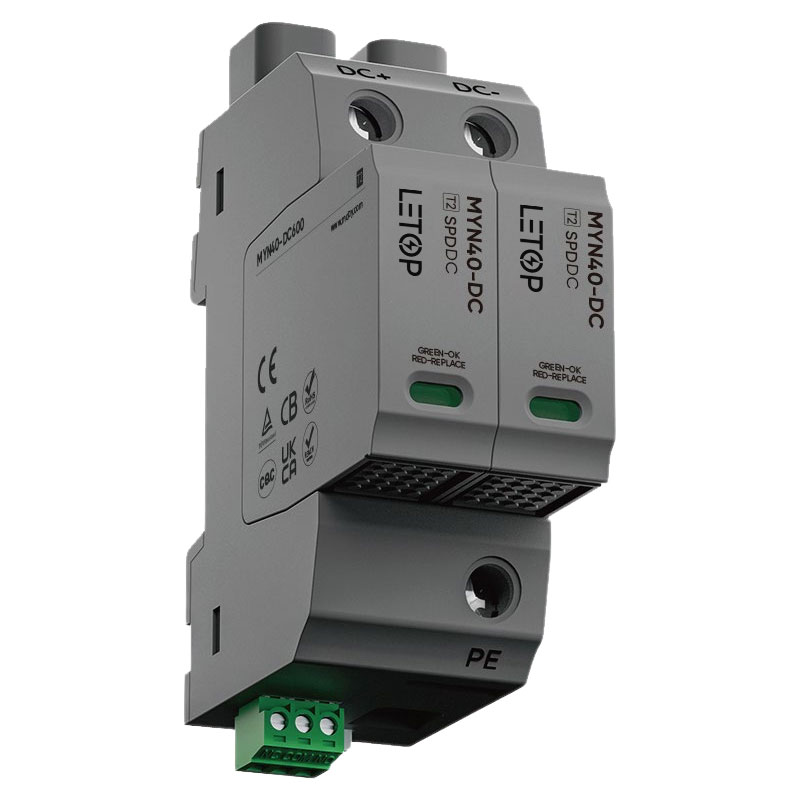

LETOP Type 2 DC surge protective device reduces residual surge voltage, protecting equipment in medium-risk environments like data centers and commercial buildings. The nominal discharge current 8/20µs (In) is 20kA. Ideal for medium-risk environments such as commercial buildings, data centers, and manufacturing plants.
As an experienced Type 2 DC SPD manufacturer, we offer comprehensive solutions that deliver key concerns of OEM brands, system integrators, and installers. Our advantages include: 10+ years of manufacturing expertise, TUV certified in-house R&D, flexible MOQ starting from 100 pieces, 2 year product warranty, and dedicated technical support team. Our quality management system ensures consistent product performance and on-time delivery for your projects.

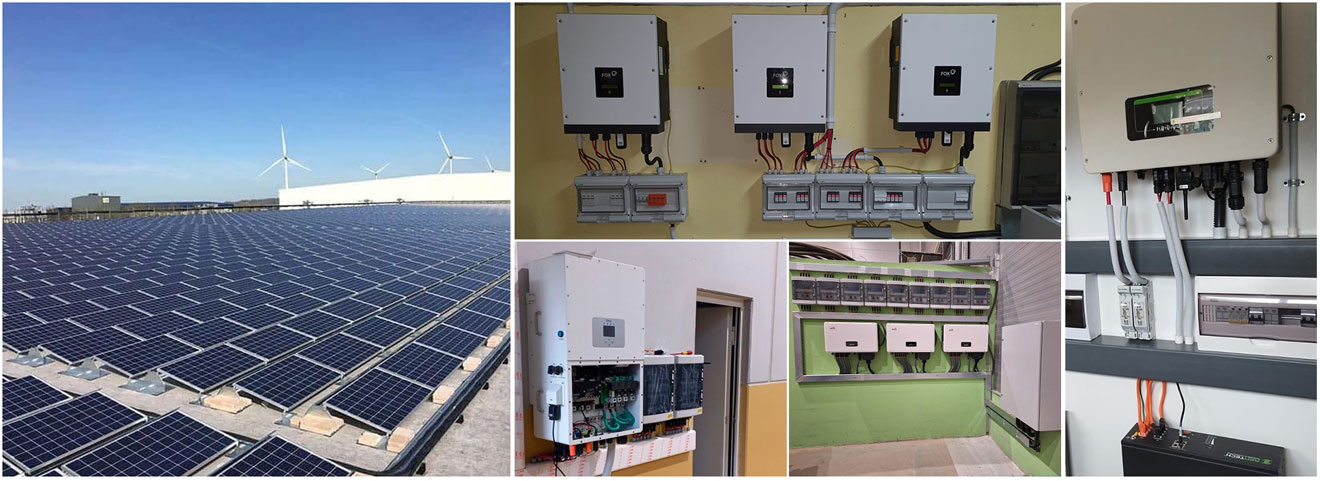

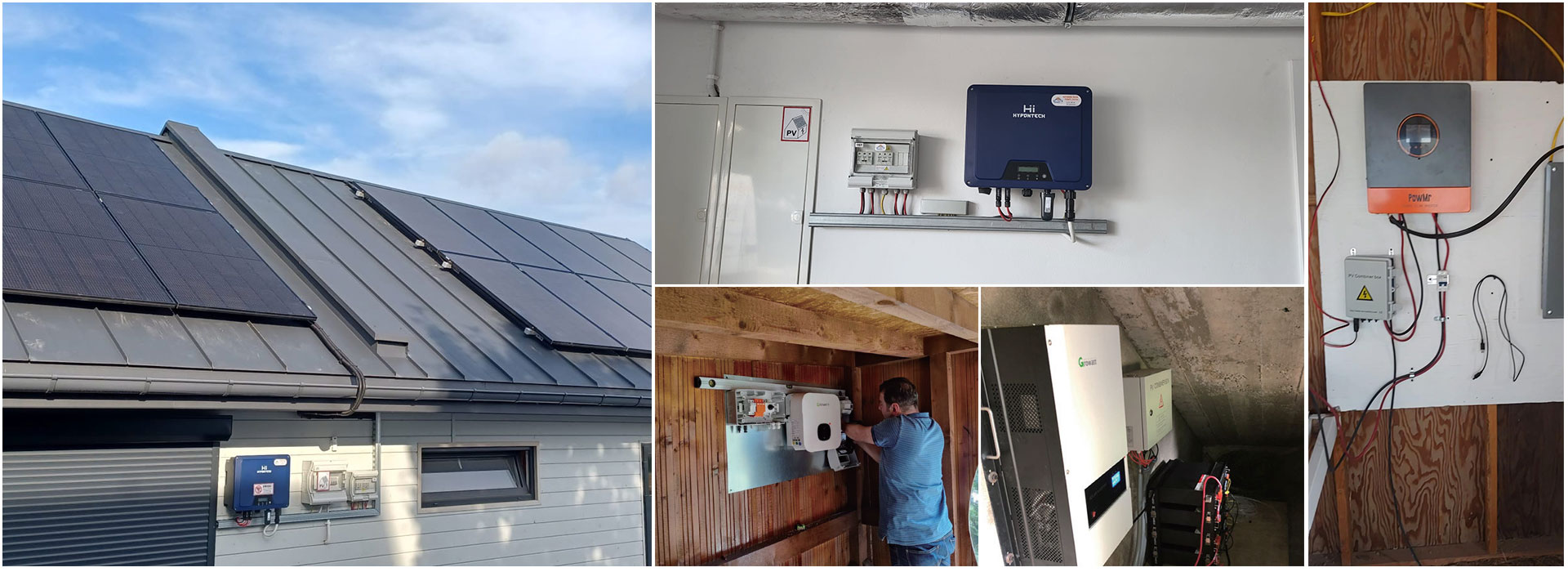

Standard surge protection for most residential, commercial, and utility-scale combiner boxes against indirect lightning strikes and switching surges.

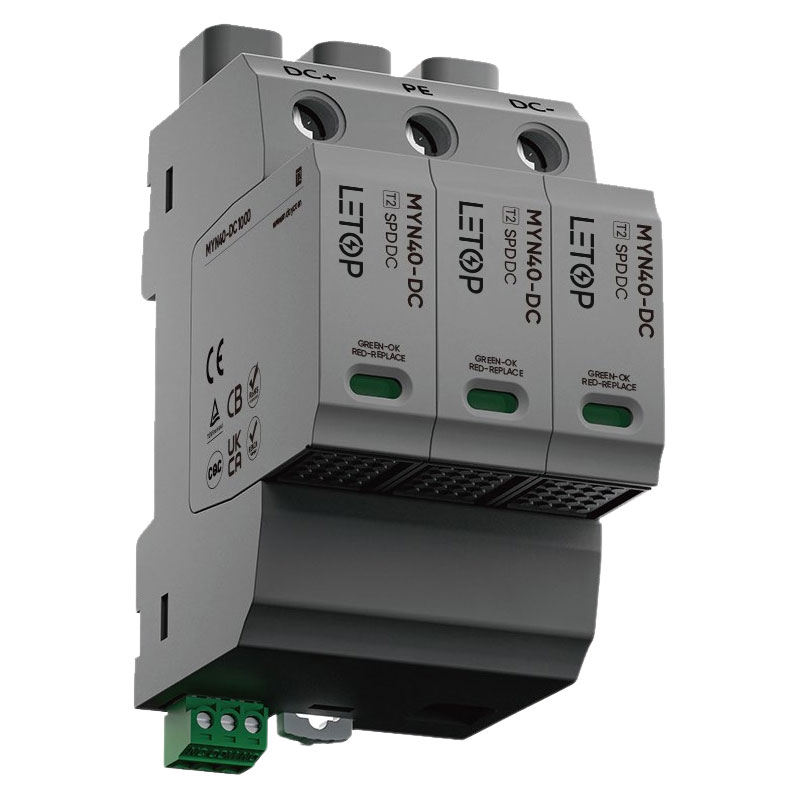

In/Imax[8/20μs]:
20kA/40kA
Voltage:
500V, 600V, 800V, 1000Vdc
Max. Backup Fuse:
63A gPV Fuse

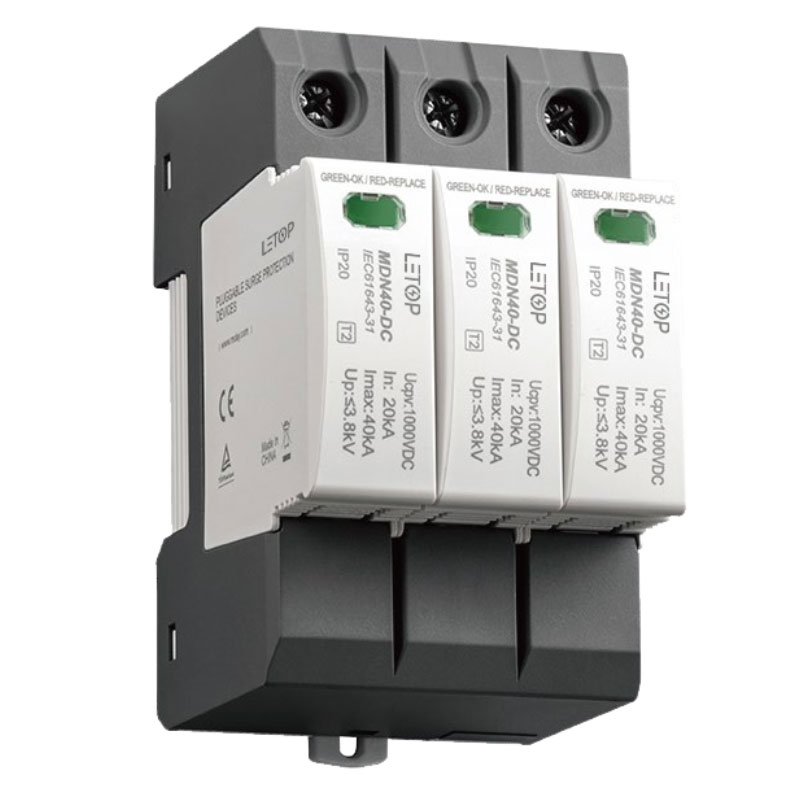

In/Imax[8/20μs]:
20kA/40kA
Voltage:
1000V, 1200V, 1500Vdc
Max. Backup Fuse:
63A gPV Fuse
In/Imax[8/20μs]:
20kA/40kA
Voltage:
500V, 600V, 800V, 1000Vdc
Response Time:
≤25ns
We are one of the few manufacturers in the SPD industry that is vertically integrated from MOV chips to finished SPDs. We independently develop formulas, produce chips, design products, and manufacture and assemble. We master core technologies and supply chains to ensure stable product quality, controllable delivery cycles, and strong cost competitiveness. This enables LETOP to respond quickly to market needs and provide highly customized solutions.

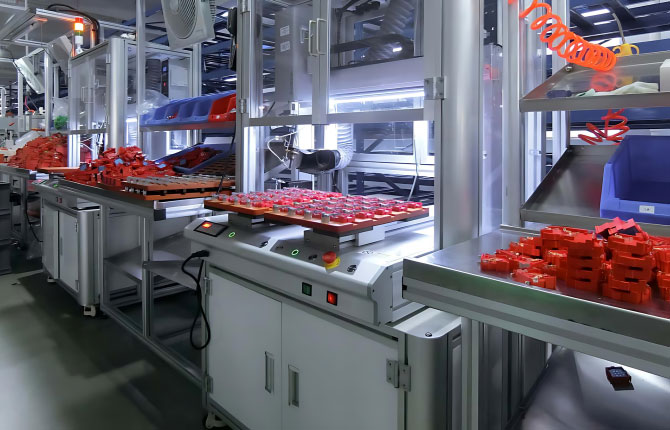

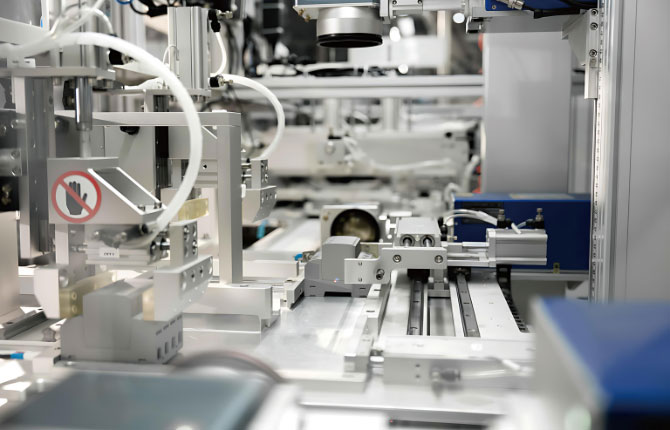

Our advanced manufacturing plant covers an area of 15,000 square meters and has 4 dedicated production lines configured for Type 2 DC surge protector assembly. With automated assembly systems and automated precision welding equipment, we always maintain consistent quality standards and produce 1.5 million Type 2 DC surge protectors per month, ensuring reliable supply chain support for bulk orders.

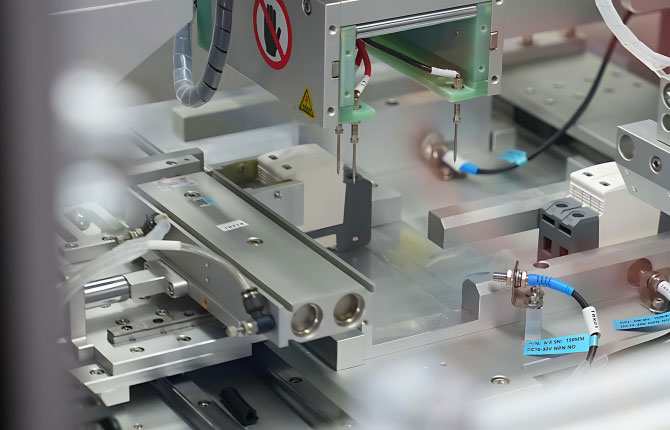

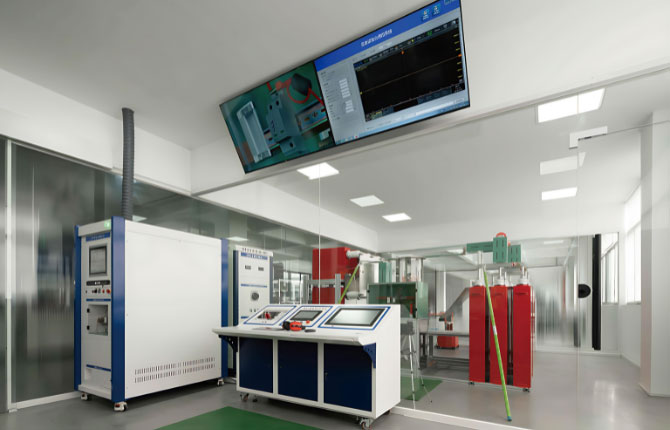

We invests in automated testing equipment (including dedicated 8/20μs pulse generators and aging test chambers), allowing us to verify each Type 2 DC surge protector according to strict performance standards.
Here you can find answers to some of your common questions related to the DC SPD.

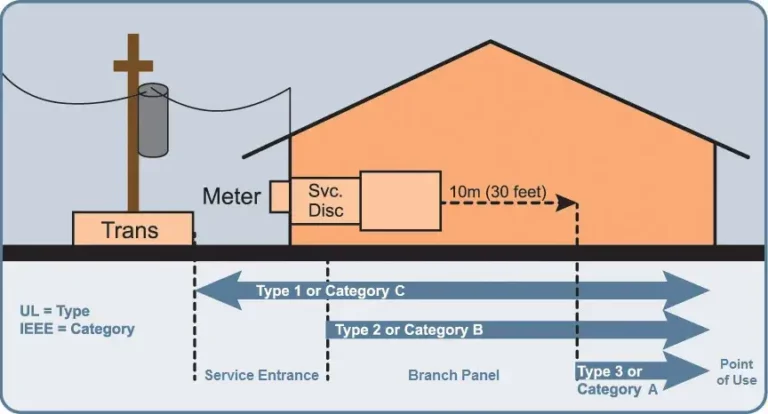

Type 2 DC SPDs are specifically designed to protect against induced lightning strikes and switching overvoltages (8/20μs waveform), and are primarily installed inside equipment or at secondary protection locations. Compared to Type 1+2 combined devices, Type 2 devices have a faster response time (<25ns) and lower protection voltage levels, but a relatively smaller discharge capacity. Situations where choosing a Type 2 DC SPD is appropriate include:
As a professional manufacturer, our Type 2 DC SPDs are optimally designed to achieve the best balance between protection performance and cost, making them particularly suitable for price-sensitive applications that still require reliable protection. We can assist you in choosing the most suitable protection solution based on your specific risk assessment results and budget considerations.
Our Type 2 DC SPDs are specifically strengthened for harsh outdoor PV application environments:

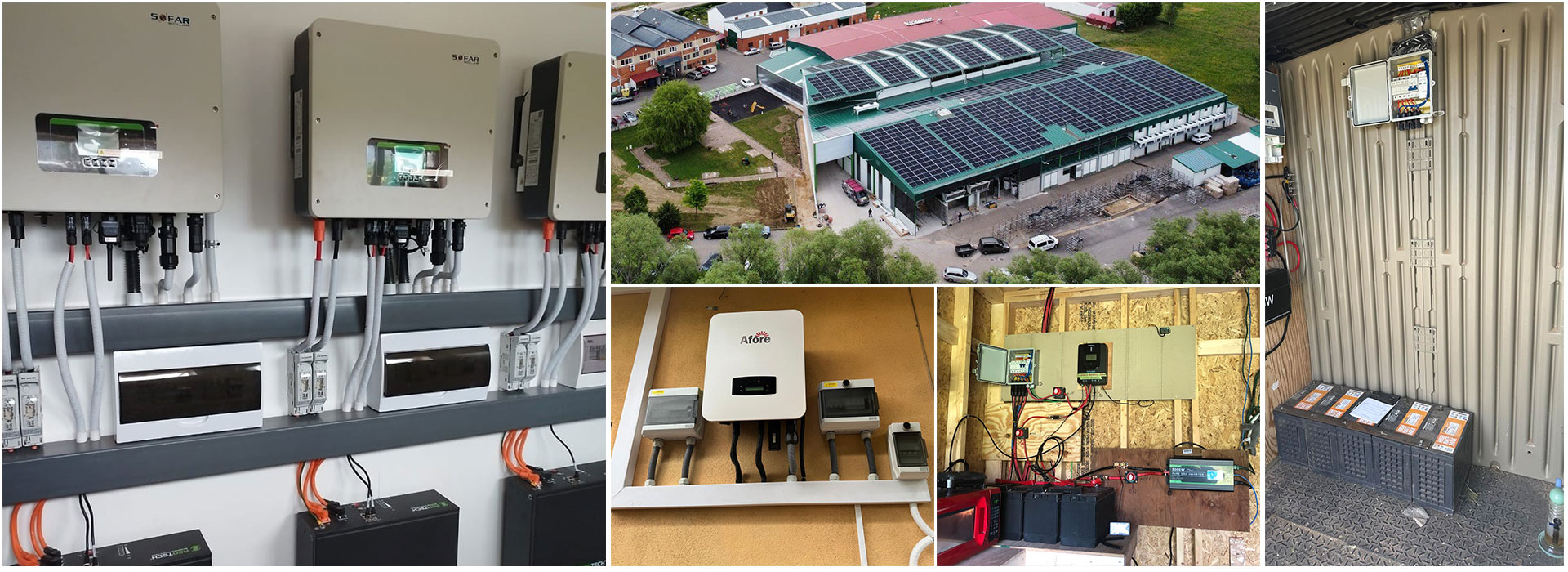

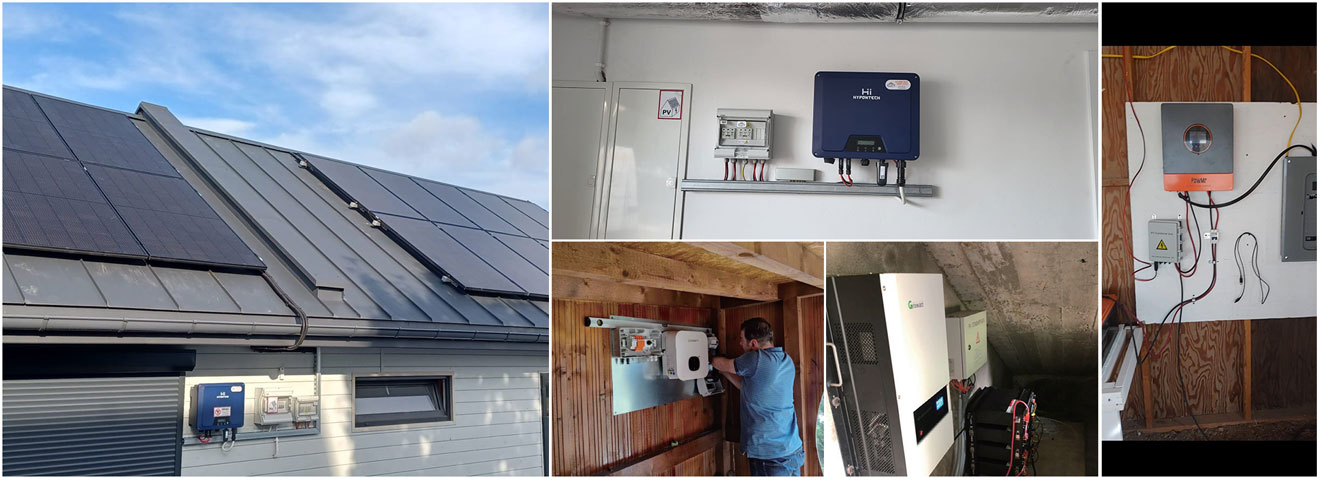

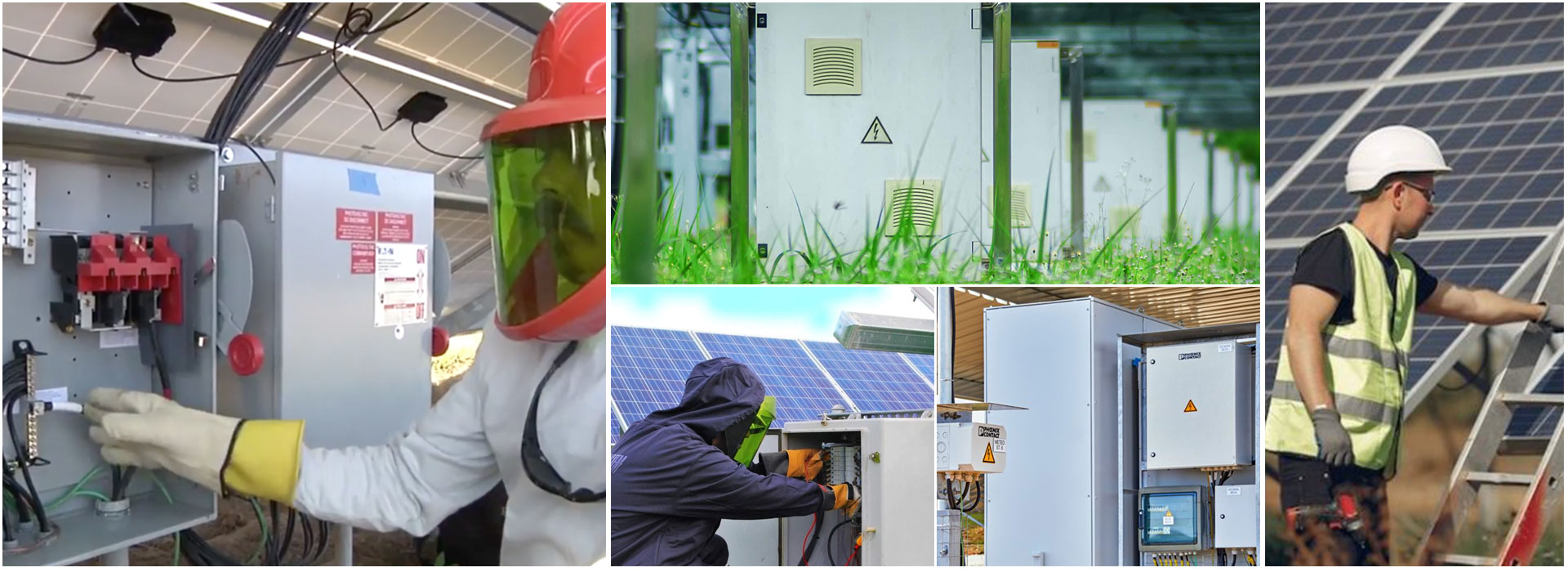

We have successful application cases in various extreme environments worldwide, including desert regions in the Middle East (+70°C high temperature), Northern Europe (-40°C low temperature), coastal areas (high salt spray), and high-altitude regions. The products have undergone 100,000 hours of actual operation verification, with a Mean Time Between Failures (MTBF) exceeding 25 years. We also offer environmental adaptability customization services to optimize product design for special application environments.
Choosing the appropriate Type 2 DC SPD requires comprehensive consideration of the following key parameters:
We provide free system protection solution design services, including SPD quantity configuration, installation location recommendations, and protection coordination analysis. For complex projects, our technical team will recommend precise products based on your system parameters (voltage level, power, installation location, environmental conditions).
Our Type 2 DC SPD stands out in the market with several core technical advantages:
Compared to similar products, our Type 2 DC SPD offers significant advantages in protection performance, service life, and maintenance convenience. These technological innovations provide customers with higher protection value and lower total lifecycle cost.
Verifying the protection effectiveness of Type 2 DC SPD requires multiple levels of assessment:

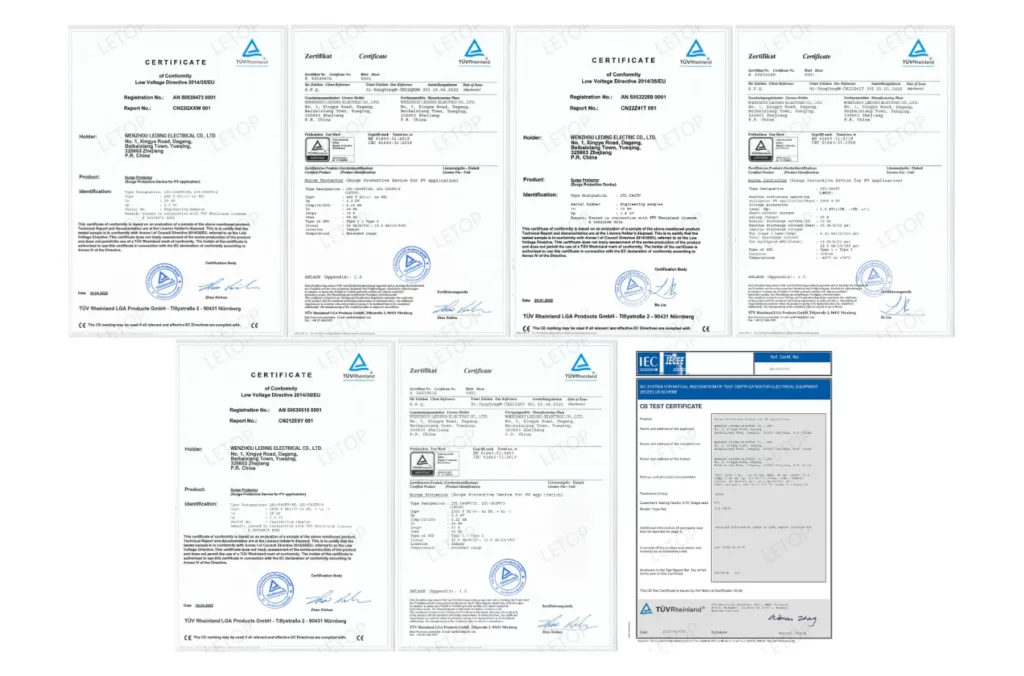

For important projects, we can also provide third-party witnessed testing services. We have established a TÜV-certified internal laboratory and accumulated sufficient actual lightning impulse test data to provide reliable data support for product performance. All test reports and certification documents can be provided to customers to ensure compliance with project acceptance and insurance assessment requirements.
Our Type 2 DC SPD is designed for "safe failure" mode, and the main failure modes include:
We have strong supply capabilities to meet project demands of various scales:
The application of Type 2 DC SPD in different PV systems requires differentiated configurations:
As a professional manufacturer, we provide customers with competitive prices through mass production and technological advantages:
Criteria for becoming an distributor partner:
Cooperation process:
We have established agency partnerships with over 50 well-known enterprises globally, including famous electrical brands, equipment distributors, and installers. These successful cooperation cases demonstrate our cooperation philosophy and service capabilities. We look forward to developing together with more excellent partners and creating greater value in the global PV market. If you are interested in establishing an agency partnership, please contact our business team for detailed discussions. We will formulate a personalized cooperation plan based on your specific situation to ensure mutually beneficial long-term development.
