600V DC Surge Protective Device Manufacturer

LETOP 600V DC SPD is a Class C surge protection device designed to protect photovoltaic power grids from lightning surge voltages. DC surge protective device can be installed in parallel on a DC network to provide common-mode and differential-mode protection. LETOP 600V DC SPD is ideal for the main operating voltage in photovoltaic systems. It is recommended to use it at both ends of the DC power line (solar panel side and inverter/converter side), especially when the line is long and externally wired.

LETOP 600V DC SPD features a high energy MOV with thermal breakers and fault indicators to ensure reliable performance. In addition, it has a remote signal function for easy monitoring. DC surge protector is built with a plug-in module for quick and easy maintenance in the event of a failure, allowing seamless disconnection of the DC network. This makes it an essential part of maintaining the integrity and safety of PV systems.


Send Inquiry dowmload datasheet
LY1-C40PV type2 1000V 2P dc surge protective device

Type2 600V 2P DC Surge Protective Device

Get a FREE Quote

Type2 600V 3P DC Surge Protective Device

Get a FREE Quote

600V DC Surge Protective Device for Photovoltaic Solar Panel Inverters

  • Housing: Pluggable Design
  • Protective elements: High Energy Metal Oxide Varistor (MOV)
  • Location of Use: Sub-Distribution Boards
  • Mode of Protection: (DC+) – PE, (DC-) – PE
  • Max. continuous operating voltage Ucpv: 600V

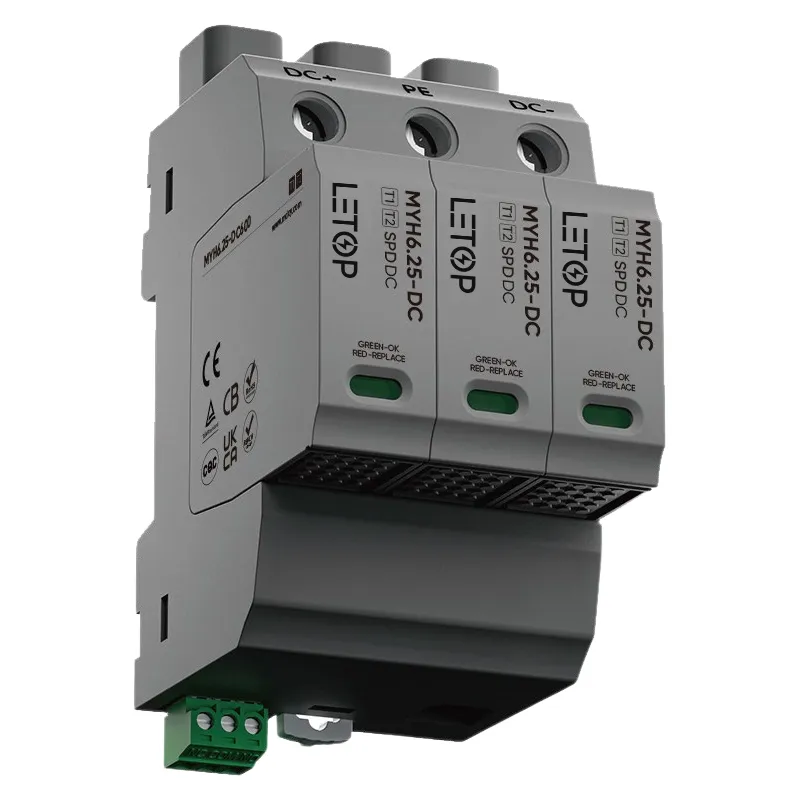

  • Type 1+2 / Class I+II / Class B+C
  • Impulse discharge current (10/350 μs) Iimp = 6.25kA @ Type 1
  • Nominal discharge current (8/20 μs) In = 20kA @ Type 2
  • Maximum discharge current (8/20 μs) Imax = 40kA @ Type 2

600V DC Surge Protective Device Datasheet

600V DC SPD Datasheet

600V DC SPD Internal Configuration

600V 1000V 1500V DC SPD Internal Configuration

600V DC SPD Connection Diagram

600V DC SPD Connection Diagram

600V DC SPD Dimensions

600V DC SPD Dimensions

600V DC SPD Certificates

Certificates of DC Surge Protective Device

LETOP Factory Tour

product design 2

Ready to Get the Custom 600V DC SPD Solution?

Contact Us to Get A Free Consultation!
