| Supply voltage | 230Vac, 50/60Hz other voltages on request |
| Switching capacity | Resistive load: 16 A / 250 V~ at cosφ=1 |
| Inductive load: 4 A / 250 V~ at cosφ=0.6 | |
| Number of switching segments | 96 |
| Time accuracy at 25 °C | ≤± 2 Sec./day (quartz) |
| Power reserve | 100 hours |
| Switching output | Potential-free and phase-independent |
| Type of protection | IP 20 |
| Class of protection | II according to IEC/EN 60730-1 |
| Permitted ambient temperature | High-temperature resistant, self-extinguishing thermoplastic |
| Test approval | CE |
| Power consumption | 1 VA |

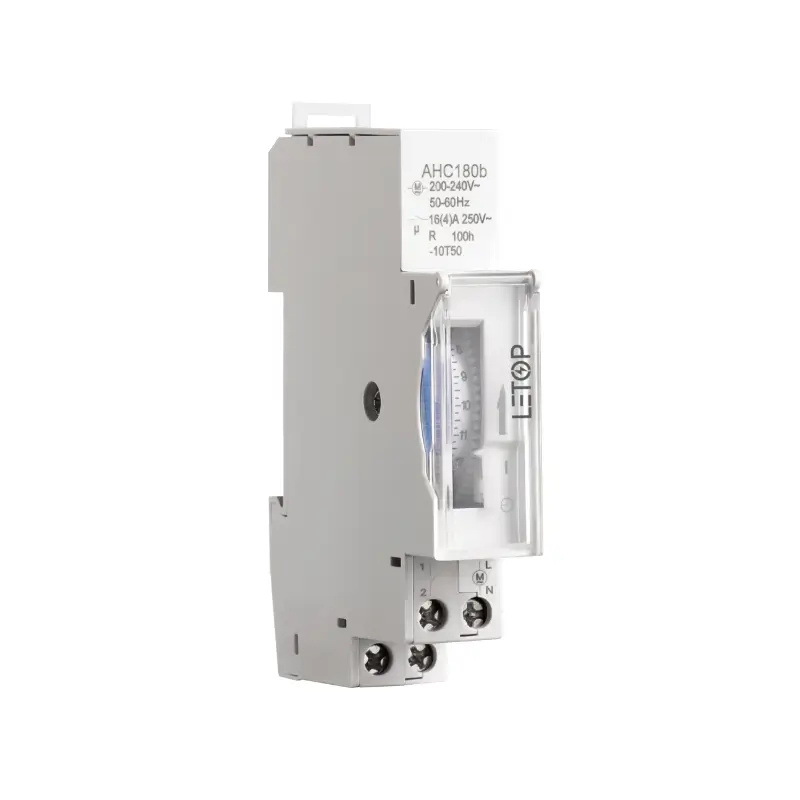

AHC180b analog automatic timer switch
AHC180b mechanical time switch is a cost-effective solution for small automated activities. It has a switching capacity of 16Amps. This device is perfect for controlling conventional household white goods and systems with 24 hour operation, such as heating, ventilation, refrigeration, lighting, safety, or pump systems.
- 1 channel, daily program
- DIN rail, screw terminals
- Quartz controlled
- Shortest switching time: 15 minutes
- 96 switching segments
- Manual switch with 2 positions: Permanent ON/AUTO
